The jack arch flooring system is stable under normal static conditions. Jack arch roof construction where trapezoidal reinforced concrete beams are used at intervals between which hollow terra cotta blocks form small elongated multiple vaults. Instead they are flat in profile and are used under the same circumstances as lintels unlike lintels which are subject to bending stress jack arches are composed of.

island carpets isle of wight is simple green safe for granite countertops italian living room furniture uk killing floor 2 quarter pounder and fleshpound spawn combo joanna gaines magnolia bedroom decor jolly jumper musical mat reviews jeep yj soft upper doors for hardtop jack laurie carpet

Unit Iii Floors The Purpose Of Floor Is To Provide A Level Surface And Supporting The Occupant Furniture Etc Types Of Floors Basement Floor Ground Floor Ppt Download

Guide To Repair And Waterproofing Of Jack Arch Concrete Roof Civil Engineering Projects

Chapter 8 Floorings

A Typical Form Of Jack Arch Slab And Its Details Download Scientific Diagram

Ppt By Maruthish On Floors

Jack Arch Roofing Auroville Wiki

Among the advantages of jack arch roofing is unlimited length.

Jack arch flooring ppt.

Ppt by maruthish on floors 1. Alternate names are flat arch and straight arch. Scribd is the world s largest social reading and publishing site. Floor slab view presentation slides online.

Flooring is the general term for a permanent covering of a floor or for the work of installing such a floor covering. Introduction jack arch slabs have been extensively used to floor and roof urban and rural buildings in iran. Unlike regular arches jack arches are not semicircular in form. Once the width of the room is limited say within 12 to 15 t which can be connected by wood beam or steel girder the length of the.

Upper floors ppt free download as powerpoint presentation ppt pdf file pdf text file txt or view presentation slides online. Floor covering is a term to generically describe any finish material applied over a floor structure to provide a walking surface. Floor covering is a term to generically describe any finish material applied over a floor structure to provide a walking surface. A jack arch is a structural element in masonry construction that provides support at openings in the masonry.

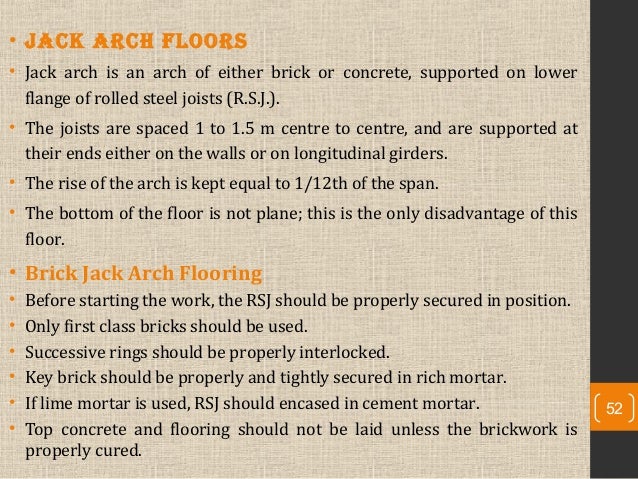

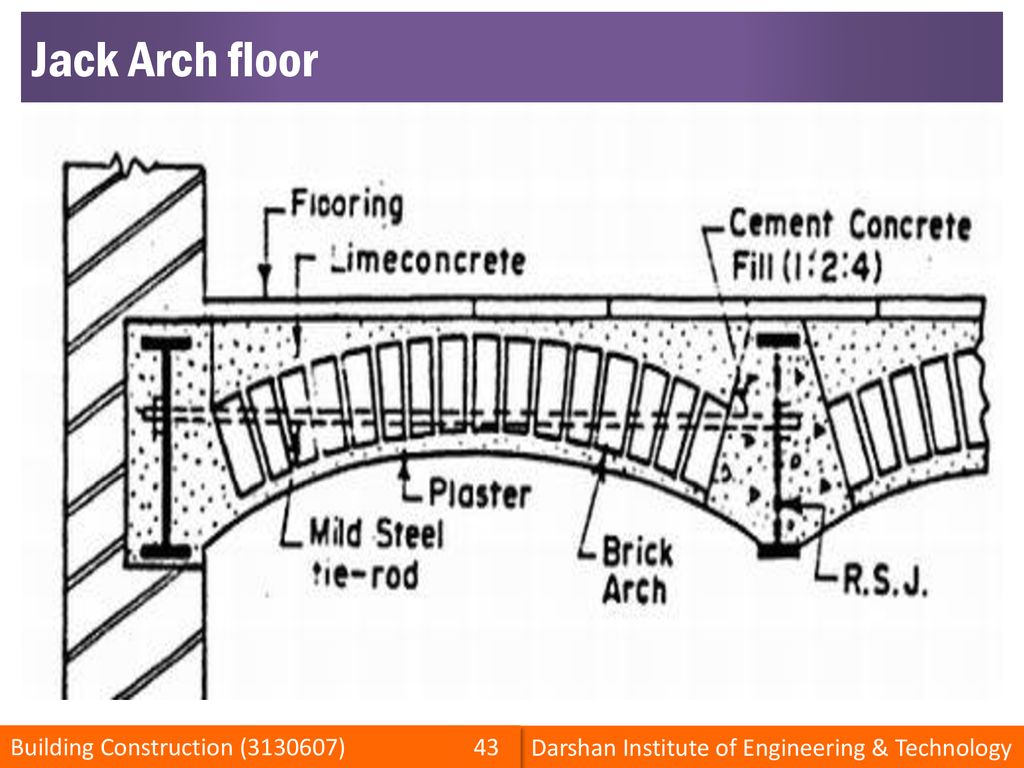

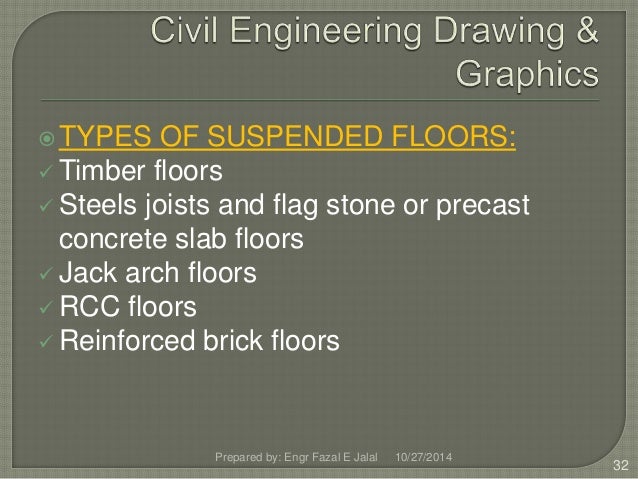

Above them concrete fill is laid providing a level surface upon which the flooring finish can be if there is another level in the structure. Engr fazal e jalal 2. The joists are spaced 1 to 1 5 m centre to centre and are supported at their ends either on the walls or on longitudinal girders. These floors are formed through constructing brick or concrete arches called jack arches on the lower flanges of mild steel joists.
